Density of Aluminum and Aluminum Alloys

Exploring Aluminium Alloys: Density and Applications

Introduction
Aluminum, known for its light weight and versatility, is crucial in various industries.
Its density and the density of its alloys are vitalfactors that influence its applications.
This article delves into the density of aluminum, the factors affecting it, and its significance in industrial applications.

What is Aluminium Density?
Density is a measure of mass per unit volume. In mathematical terms, density (ρ) is defined as:
Density(ρ)=Volume/Mass
​For aluminium, this means the mass of aluminium occupying a specific volume. The standard density of pure aluminium is approximately 2,710 kg/m³. This value does not vary significantly for aluminium alloys, ranging between 2,640 kg/m³ and 2,810 kg/m³.

Density of Pure Aluminum

The density of pure aluminium is approximately 2,710 kg/m³ (0.1 lb/in³). The Aluminum Association standardises this value and serves as a benchmark for comparing the densities of aluminum alloys.

Density of Aluminium Alloys

The density of aluminum alloys typically ranges from 2,640 kg/m³ to 2,810 kg/m³. These variations are due to the small proportion of alloying elements added to pure aluminum. For instance, the 5xxx and 6xxx series alloys are among the lightest because they primarily contain magnesium, which has a lower density.

Density Chart for Aluminium Alloys

Different grades of aluminum alloys have specific densities:

Aluminium Alloy	Density (kg/m³)	Density (lb/in³)	Density (g/cm³)
1050/1060	2705	0.0977	2.710
1100	2710	0.0979	2.710
2011	2830	0.1022	2.830
3003	2730	0.0986	2.730
5052	2680	0.0968	2.680
6061	2700	0.0975	2.700
7075	2810	0.1015	2.810

Alloy Densities in Die Casting

Aluminium Alloy	Density (kg/m³)	Density (lb/in³)	Density (g/cm³)
ADC12 (A383)	2,740	0.099	2.74
A380	2,710	0.098	2.71

Relationship Between Aluminium Densities and Die Casting Design

The density of aluminium alloys significantly impacts die-casting design. Understanding this relationship is crucial for optimizing the final product’s performance, efficiency, and cost-effectiveness. Here are critical aspects of how aluminium alloy densities influence die casting design:

1. Weight Considerations

• Lightweight Components: Lower aluminium density produces lighter components, which is beneficial in industries like automotive and aerospace, where weight reduction is critical.
• Fuel Efficiency: In automotive applications, lighter components improve fuel efficiency and reduce emissions.

2. Strength-to-Weight Ratio

• Structural Integrity: Aluminium alloys with a favorable strength-to-weight ratio allow for robust yet lightweight structures.
• Performance Optimization: High strength-to-weight ratio is essential for high-performance applications without added bulk, such as aerospace parts.

3. Design Flexibility

• Complex Geometries: Lower density alloys facilitate the casting of complex shapes and thin-walled structures, offering more design flexibility.
• Precision and Accuracy: The ability to cast intricate designs with lower-density alloys enhances the precision and functionality of the components.

4. Thermal Conductivity

• Heat Dissipation: Aluminium alloys are known for their excellent thermal conductivity. Lower density alloys help in effective heat dissipation, crucial for electronic housings and heat sinks.
• Thermal Management: Efficient thermal management is necessary to maintain performance and safety in automotive and aerospace applications.

5. Cost Efficiency

• Material Savings: Using lower density alloys can lead to significant material savings, reducing the overall production cost.
• Shipping and Handling: Lighter components are cheaper and easier to transport, reducing logistics costs.

6. Mold Design and Lifespan

• Wear and Tear: The density of the alloy affects the wear and tear on the die-casting moulds. Lower-density alloys tend to cause less wear, extending the molds’ lifespan.
• Cooling Rates: The cooling rates of different alloys can vary with density, impacting the design of cooling systems in the molds.

Factors Influencing Density

Several factors can influence the density of aluminum alloys, including:

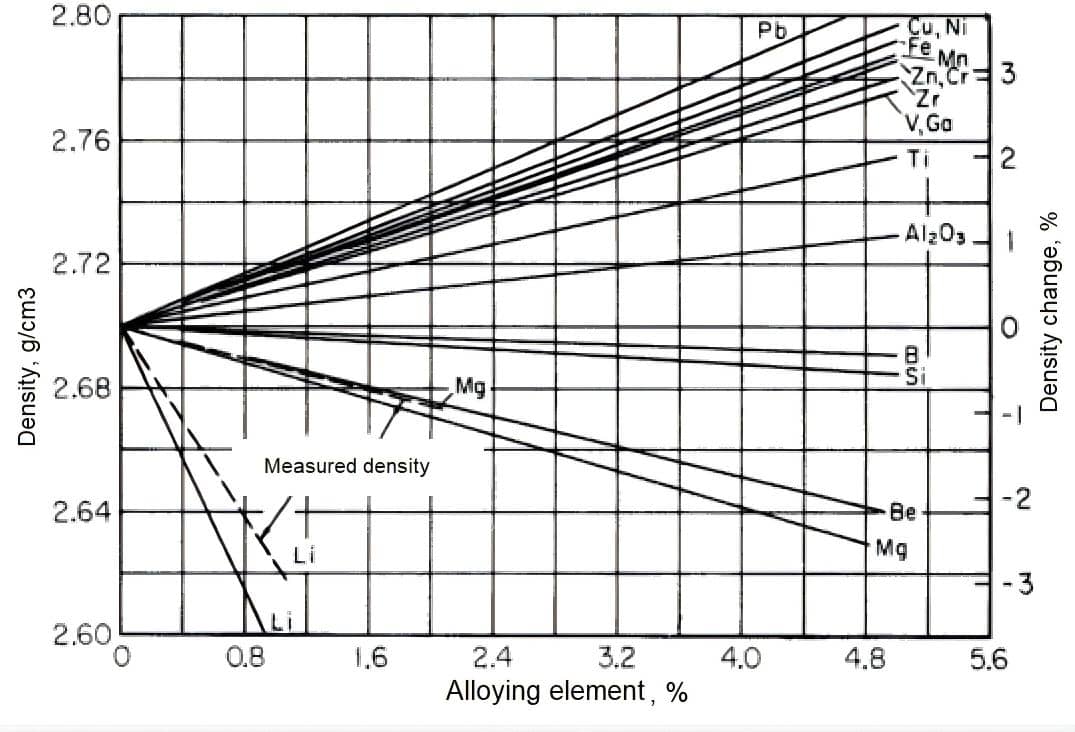

• Alloying Elements: The type and proportion of alloying elements, such as magnesium, copper, and zinc, affect the overall density.
• Processing: Techniques like heat treatment, cold working, and grain size modification can alter density.
• Porosity: Due to porosity, die casting alloys often have a density ranging from 95% to 100% of their theoretical density.

Significance of Aluminium Density The low density of aluminium alloys offers several benefits:

• Lightweight: No aluminium alloy exceeds a 3 g/cm³ density, making them ideal for applications requiring high strength-to-weight ratios.
• Selection: Aluminium alloys are favoured for structural frames, fluid dynamics, and packaging due to their lightweight nature.
• Resistance: The oxide layer on aluminium alloys minimises exterior damage and corrosion.
• Reusability: Aluminium alloys consume less energy during recycling, making them cost-effective and environmentally friendly.
• Acoustics: Aluminium’s high sound speed makes it ideal for speaker diaphragms.
• Conductivity: Aluminium’s electrical conductivity is twice that of copper, making it suitable for power transmission lines.
• Expense: Lower density reduces transportation costs, making aluminium a cost-effective option.

What is the Aluminium Alloy Designation System?

The aluminium alloy designation system uses a four-digit numerical code to classify aluminium and its alloys. Here’s a simplified breakdown:

Wrought Aluminium Alloys:

• 1xxx Series: Al with 99.00% purity or higher.
• 2xxx Series: Al with copper.
• 3xxx Series: Al with manganese.
• 4xxx Series: Al with silicon.
• 5xxx Series: Al with magnesium.
• 6xxx Series: Al with magnesium and silicon.
• 7xxx Series: Al with zinc.
• 8xxx Series: Al with other elements.

The last two digits identify the specific alloy or purity level. The second digit shows modifications or impurity limits.

Cast Aluminium Alloys:

• 2xx.x Series: Al with copper.
• 3xx.x Series: Al with silicon, copper, and/or magnesium.
• 4xx.x Series: Al with silicon.
• 5xx.x Series: Al with magnesium.
• 7xx.x Series: Al with zinc.
• 8xx.x Series: Al with tin.
• 9xx.x Series: Al with other elements.

The cast alloys’ extra digits and decimal points help specify the exact composition and form.

Unique Properties of Aluminum

Aluminum’s density contributes to several desirable properties, making it suitable for a wide range of applications:

1. Lightweight: Aluminum’s low density makes it an ideal material for applications requiring light weight and high strength, such as aerospace and automotive industries.
2. Corrosion Resistance: Aluminum forms a protective oxide layer that prevents corrosion, enhancing its durability.
3. Recyclability: Aluminum is 100% recyclable, which makes it an environmentally friendly choice. Recycling aluminum requires only 5% of the energy needed to produce new aluminum.
4. Electrical and Thermal Conductivity: Aluminum is an excellent conductor of heat and electricity, making it suitable for electrical transmission lines and heat exchangers.

• LED and Outdoor Lighting: Aluminum die-cast components are often used in housings for LED lights and outdoor lamps, providing weather resistance, strength, and heat dissipation.

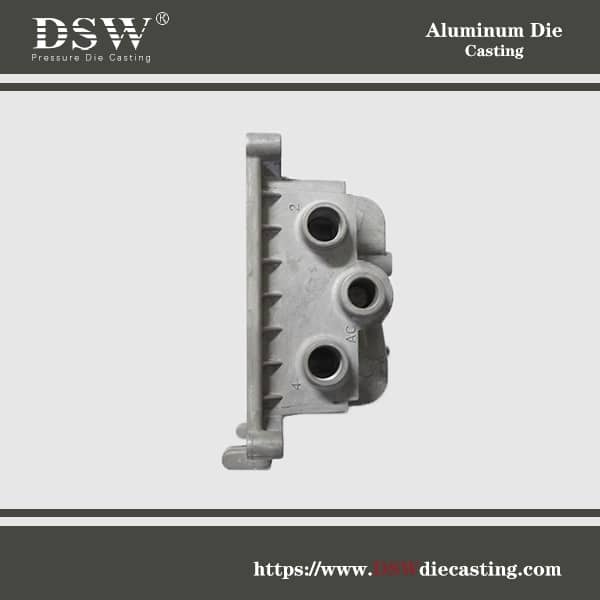

• Enclosures for Networking: Aluminum die-casting is used in protective casings for routers, modems, and communication devices, providing shielding and thermal management.

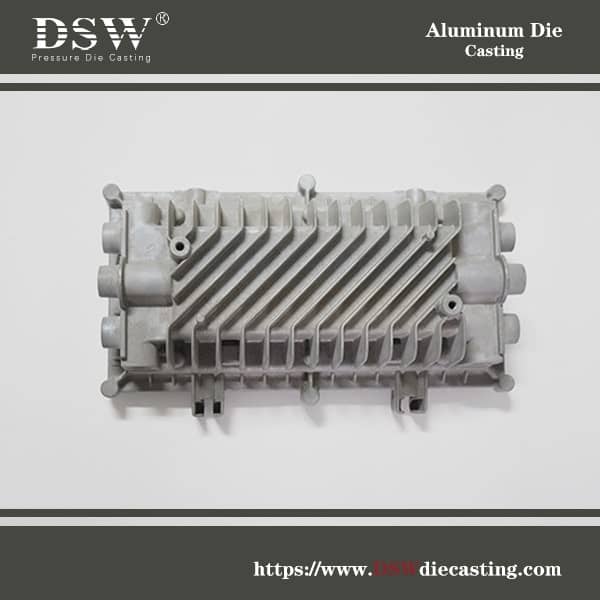

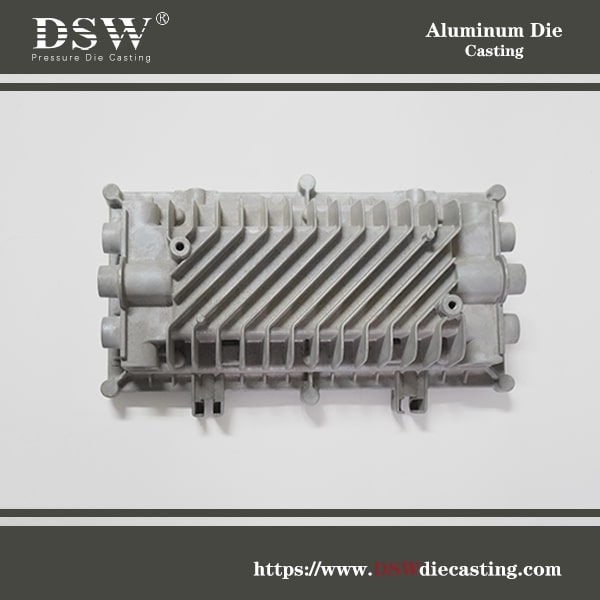

• Heat Sinks and Casings: Electronics such as LED lights, amplifiers, and CPUs use die-cast aluminum for heat dissipation and casing protection.

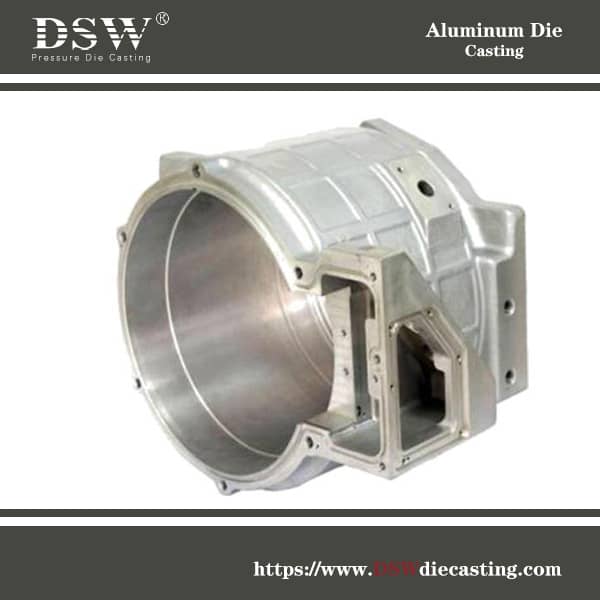

• Engine Components: Cylinder heads, engine blocks, transmission housings, and oil pans are made using aluminum alloy die casting for weight reduction and durability.

These additional applications demonstrate the versatility of aluminum alloy die casting across numerous fields, enhancing product design and performance while reducing costs and weight.
