Die Cast Tooling
Comprehensive Tool & Die Solutions for aluminum alloy parts
DSW specializes in designing and creating high-quality casting dies and die cast tooling, primarily using in-house production. Our 3,000-square-meter cast tooling plant is outfitted with advanced equipment and staffed by professional mold makers with 23 years of experience. This combination of specialist knowledge and cutting-edge technology enables us to offer comprehensive tooling services, including design, manufacture, repair, and maintenance. We provide instruments with the highest precision, quality, and long-term performance standards.
Seamless Integration of Design and Engineering
The tooling engineering teams work closely with the Cast Products design team to ensure compliance with all criteria while increasing aluminum die casting efficiency. This complete approach allows us to address every aspect of the tooling process, from early design to ultimate implementation. As a result, every instrument manufactured in our facility reflects our commitment to innovation, prioritizing quality, precision, and dependability to ensure consistent performance over time.
Our Tooling Capabilities Include:
-
- High-Pressure Cast Dies:

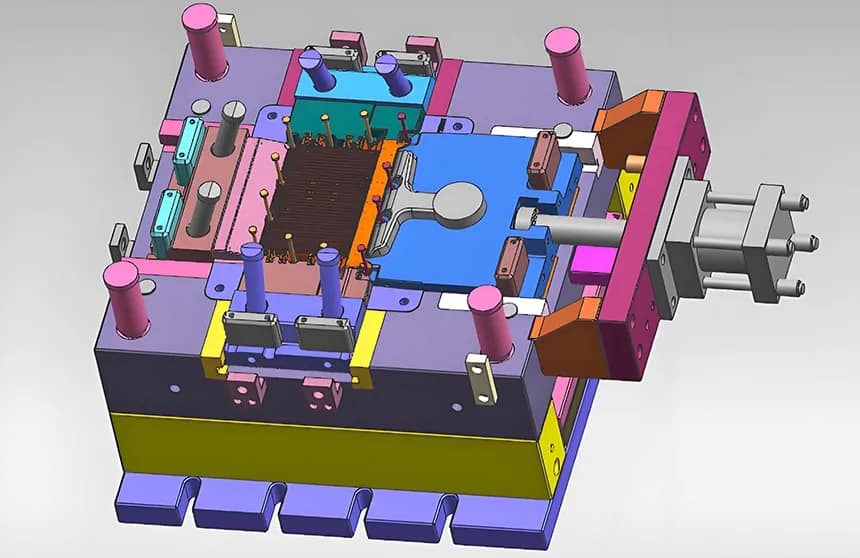

high-pressure die design DSW possesses substantial expertise and access to advanced technology, allowing us to deliver high-precision cast dies for diverse casting manufacturing. We engineer our tooling to be compatible with die-casting machines ranging from 50 to 2,000 tons, accommodating tool weights of up to 20 kg. This adaptability guarantees our ability to accommodate the requirements of various manufacturing settings, ranging from straightforward to intricate die designs. Our services include:
- 3D Parametric Modeling: Ensuring optimal design before fabrication.
- Flow Simulations and Thermal Analysis: Advanced simulations predict material flow and analyze thermal conditions, ensuring optimal cooling and efficient production.
- Multi-Slide Dies: Designed to handle both standard and specialized slide pulls, including submarine-style and cam-actuated options, for complex part geometry.
- Internal Features: Loose-piece inserts are used for intricate internal features, enhancing casting precision.
- Conformal Cooling Lines: Tailored cooling lines reduce cycle times and extend tool life while improving production consistency.
- Documentation: We provide comprehensive die manuals and service documentation, including certificates of material conformance and heat treatment, ensuring compliance at all stages.
- Trim Dies:
Our trim dies are meticulously designed to minimize secondary operations while improving the final form and visual appeal of cast components. By focusing on automation, we enhance production line efficiency and contribute to precise final products, reducing rework and improving overall throughput. - Permanent Molds
Specializing in tilt-pour and gravity-fed permanent molds, as well as semi-permanent molds using sand core boxes, we provide tooling solutions that ensure both durability and precision. These molds are essential for producing complex die-cast parts with intricate details, contributing to efficient and accurate mass production. - Hot Forging Dies:
DSW also excels in designing and manufacturing hot-forging dies, particularly for the aerospace industry. We engineer these dies to form high-strength components for lightweight and durable automotive applications. - Fixtures and Jigs:
- High-Pressure Cast Dies:
We provide jigs and custom fixtures to increase manufacturing productivity. These precise tools help to maximize processes, improve homogeneity, and ensure high-quality manufacturing through consistency. Our personalized solutions assist firms in maintaining consistent quality and reducing production line downtime.
Typical Die Steel for Casting Dies
These materials are selected based on the specific requirements of the die casting process, including the type of aluminum alloy being cast, the volume of production, and the operating conditions.
- H13 Tool Steel
- Widely used for its heat resistance, toughness, and thermal fatigue resistance.
- H11 Tool Steel
- Offers high toughness and thermal shock resistance, ideal for demanding applications.
- H21 Tool Steel
- Excellent heat resistance and thermal conductivity for high-stress conditions.
- H19 Tool Steel
- High hardness and wear resistance, suited for intense wear environments.
- P20 Steel
- Cost-effective and easy to machine, best for prototype or low-volume molds.
- 1.2344 (DIN H13 Equivalent)
- Similar to H13 with high toughness and wear resistance.
- 1.2367
- Superior thermal fatigue resistance for demanding aluminum die casting.
- Special Coated Steels
- Coatings like nitriding or PVD improve wear resistance for abrasive alloys.
H13 remains the most common choice due to its versatility and performance.
Industries We Serve
Our tooling solutions are trusted across various industries, each with unique precision and reliability requirements. We serve:
- Medical: Precision cast mold for critical medical device components.

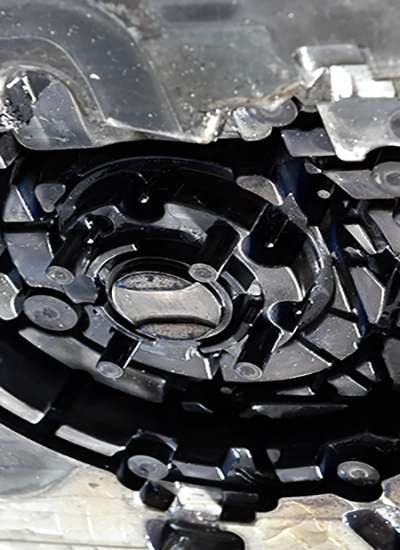

- Automotive: Die casting molds for engine blocks, transmission housings, and other automotive parts.
- Electric Vehicles: Advanced die tooling solutions for electric vehicle components.
- Recreational Vehicles: Die molds for durable, high-performance components in RV manufacturing.
- Small Engine: Efficient and precise tooling for small engine production.
- Telecommunications: Die-cast moulds for precise components used in communication devices.
- Appliance: Casting dies for household and industrial appliances.
- Power Tools: Precision casting mold for components used in power tool production.
- Electronics: Cast tooling for enclosures, heat sinks, and custom components in electronics manufacturing.
- Industrial Equipment: Casting dies for pumps, valves, and machinery components.
WHY CHOOSE DSW?
Every tool we produce satisfies the highest precision and quality criteria, ensuring precision and accuracy.
From the design stage through final implementation, our team closely and collaboratively brings creative ideas to life for you.
With over two decades of experience, we commit to delivering dependable, long-lasting tools that meet your needs.
Looking For Casting Die Manufacturer
Contact us today to discuss how our die tooling solutions can optimize your manufacturing processes and improve the quality and efficiency of your operations.
