Looking for a reliable supplier of zinc die castings?
With over 20 years of experience in the industry, DSW has developed extensive expertise in zinc die casting. Our team of skilled professionals is adept at handling diverse manufacturing challenges and delivering high-quality products.DSW offers a complete range of services, from design assistance and prototyping to finishing and packaging. We manage all aspects of zinc die-casting manufacturing, ensuring a seamless and efficient process from start to finish. We utilize advanced technologies and state-of-the-art equipment in our manufacturing processes. Our modern facilities are equipped with the latest machinery to ensure precision and consistency in production. At DSW, quality is our top priority. We adhere to stringent quality control measures throughout the manufacturing process to ensure that every product meets the highest standards of excellence.
We are committed to providing exceptional customer service and support. Our team works closely with clients to understand their needs and requirements, offering customized solutions and timely assistance.
Physical and Mechanical Properties
Zinc die castings have a range of physical and mechanical properties that make them ideal for many applications in industries such as automotive, electronics, and consumer products. Here’s a deeper look at the key physical and mechanical properties of zinc die casting:
| Property | Value |
| Density | 6.7 g/cm³ |
| Melting Point | 380-390°C |
| Thermal Conductivity | 110-120 W/m·K |
| Tensile Strength | 380-460 MPa |
| Yield Strength | 320-400 MPa |
| Elongation | 1-3% |
| Hardness (Brinell) | 80-120 HB |
| Modulus of Elasticity | ~83 GPa |
| Impact Strength | 25-35 J |
| Corrosion Resistance | Excellent |
| Creep Resistance | Good up to 120°C |

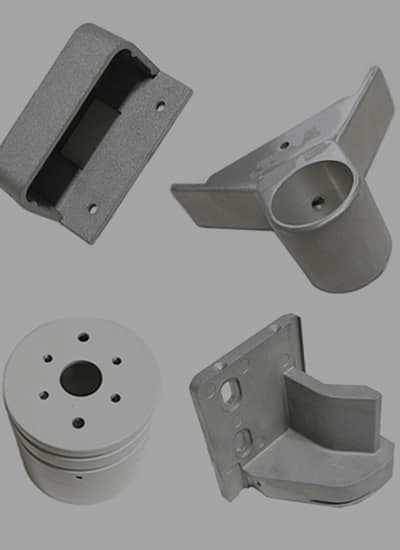

ZINC ALLOY CASTING CAPABILITIES
DSW operates 20 presses, ranging from 100 to 1000 tons, to manufacture zinc alloy die-casting components for both low and high-volume production programs. Our services include zinc hot chamber die casting, aluminium-zinc hot or cold chamber, high-pressure die casting, and aluminium die casting. We employ process monitoring, press side imaging, robotics, MAGMAsoft flow simulation, perpetual tooling, and tool maintenance programs to enhance tool life, reduce cycle times, minimize costs, and ensure high-quality die castings. DSW offers integrated services as your complete global zinc die casting manufacturing resource from initial part conception and thorough prototyping to final assembly.

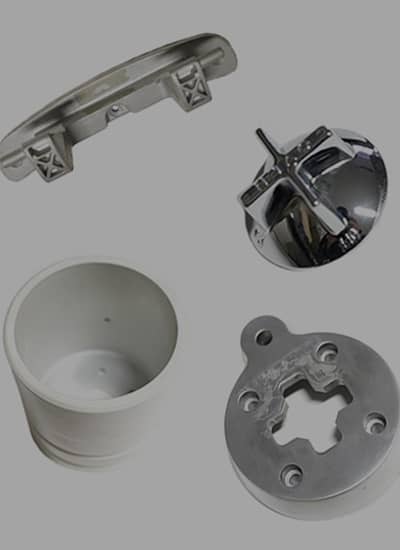

ZINC ALLOYS FOR CASTING
DSW is a leading manufacturer in the die casting industry, pouring significant quantities of aluminium and zinc annually. Our expertise extends globally, focusing on producing high-quality die cast components. To maintain stringent quality standards, our team of highly trained metallurgists conducts continuous chemical and physical analysis to ensure that all alloys meet specifications.
We offer a diverse range of alloys to meet various application requirements
| Alloy | Standard Name | Description | Aluminum (%) | Magnesium (%) | Key Properties |
| Zamak 2 | ASTM AC43A | Highest strength and hardness of the Zamak family; also known as Kirksite or Zinc Alloy 2. | ~4.0 | ~0.02 | High strength, high hardness |
| Zamak 3 | ASTM AG40A | Most widely used zinc alloy in North America; generally the first choice for zinc die casting. | ~4.0 | ~0.04 | Good balance of properties, easy to cast |
| Zamak 5 | ASTM AC41A | Most commonly used in Europe; offers slightly higher strength than Zamak 3 due to added copper. | ~4.0 | ~0.06 | Enhanced strength, suitable for heavy loads |
| Zamak 7 | ASTM AG40B | Modified version of Zamak 3 with lower magnesium content; offers improved fluidity, ductility, and surface finish. | ~4.0 | <0.001 | High purity, better finish, high ductility |
| ZA-8 | – | Zinc aluminum alloy with approximately 8.4% aluminum; the only ZA alloy suitable for hot-chamber die casting. | ~8.4 | – | High strength, hot-chamber castable |
| ACuZinc5 | – | Developed by General Motors; known for excellent creep performance, surface hardness, and lubricity. | ~4.0 | ~0.08 | Creep resistance, high hardness, lubricity |
| EZAC | – | Hot-chamber zinc die casting alloy with superior creep resistance, high yield strength, and high hardness. | ~3.8 | ~0.04 | High yield strength, creep resistance |
| ZA-27 | – | Zinc aluminum alloy with about 27% aluminum; offers excellent strength and hardness, significantly higher aluminum than the Zamak alloys. | ~27.0 | ~0.02 | Very high strength, high aluminum content |
These alloys are carefully selected and processed for optimal performance and durability in die casting applications. Our commitment to quality and innovation drives us to exceed customer expectations and deliver superior products that meet the highest industry standards.
Prototype Manufacturing
DSW can create prototype zinc die castings in smaller quantities for clients who need low-volume production. They use various methods to achieve this, ensuring that prototypes are made accurately and efficiently. These methods include plaster injection mold castings, CNC machining and hog-outs, direct metal laser sintering (DMLS), and P-20 tooling. Each method is chosen based on the project’s unique requirements, allowing DSW to provide prototypes that closely resemble the final product while meeting the client’s deadlines and budget. This capability underscores DSW’s commitment to offering comprehensive solutions and supporting clients throughout the manufacturing process, from initial concept to production.
SURFACE FINISHING
DSW efficiently oversees customer finishing specifications to ensure timely and cost-effective compliance with part requirements. Our zinc surface finishing options encompass, but are not limited to, the following:
Powder Coating (applied electrostatically)
Wet Paint
Chromate
E-Coat
Electroless Nickel
Chrome
Silk Screening and Stenciling
EMI/RFI Shielding
Surface Conditioning (including shot and bead blasting)
Ready to Experience the DSW Difference?
Contact us today for a free quote or to discuss your specific zinc die casting needs.
We look forward to partnering with you and exceeding your expectations!
